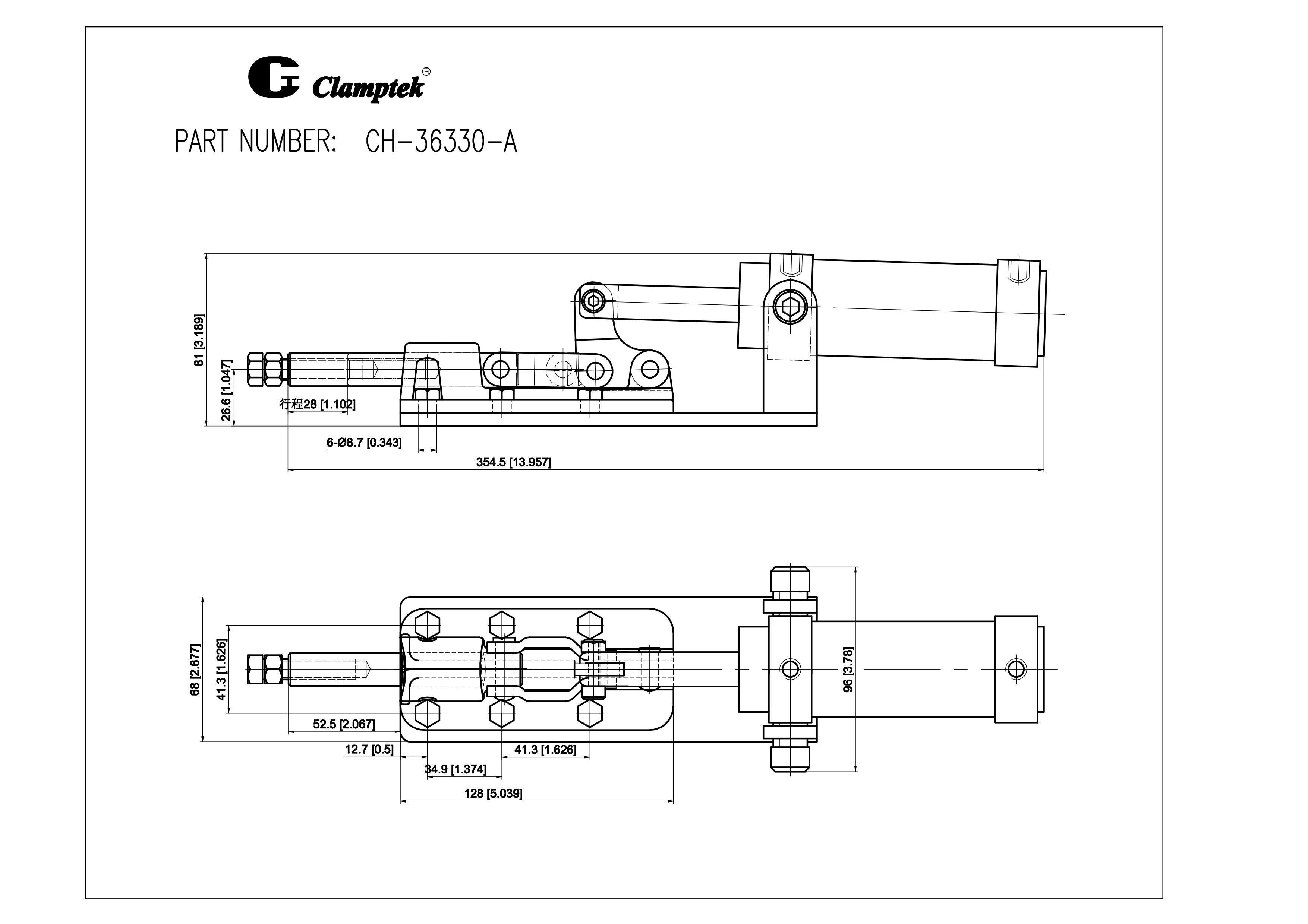

36330M-A
CH-36330M-A
Product Information
Maximum Holding Capacity：1136Kg
Spindle Supplied：CH-SA-105015
Plunger Stroke：28mm
Port Size：G1/8"
Cylinder Inside Diameter：40mm
Cylinder Area：12.56cm²
Maximum Cylinder Air Pressure：10kg/cm²(140PSI)
Spindle Supplied：CH-SA-105015
Plunger Stroke：28mm
Port Size：G1/8"
Cylinder Inside Diameter：40mm
Cylinder Area：12.56cm²
Maximum Cylinder Air Pressure：10kg/cm²(140PSI)
