CHS, HSC

Product Information

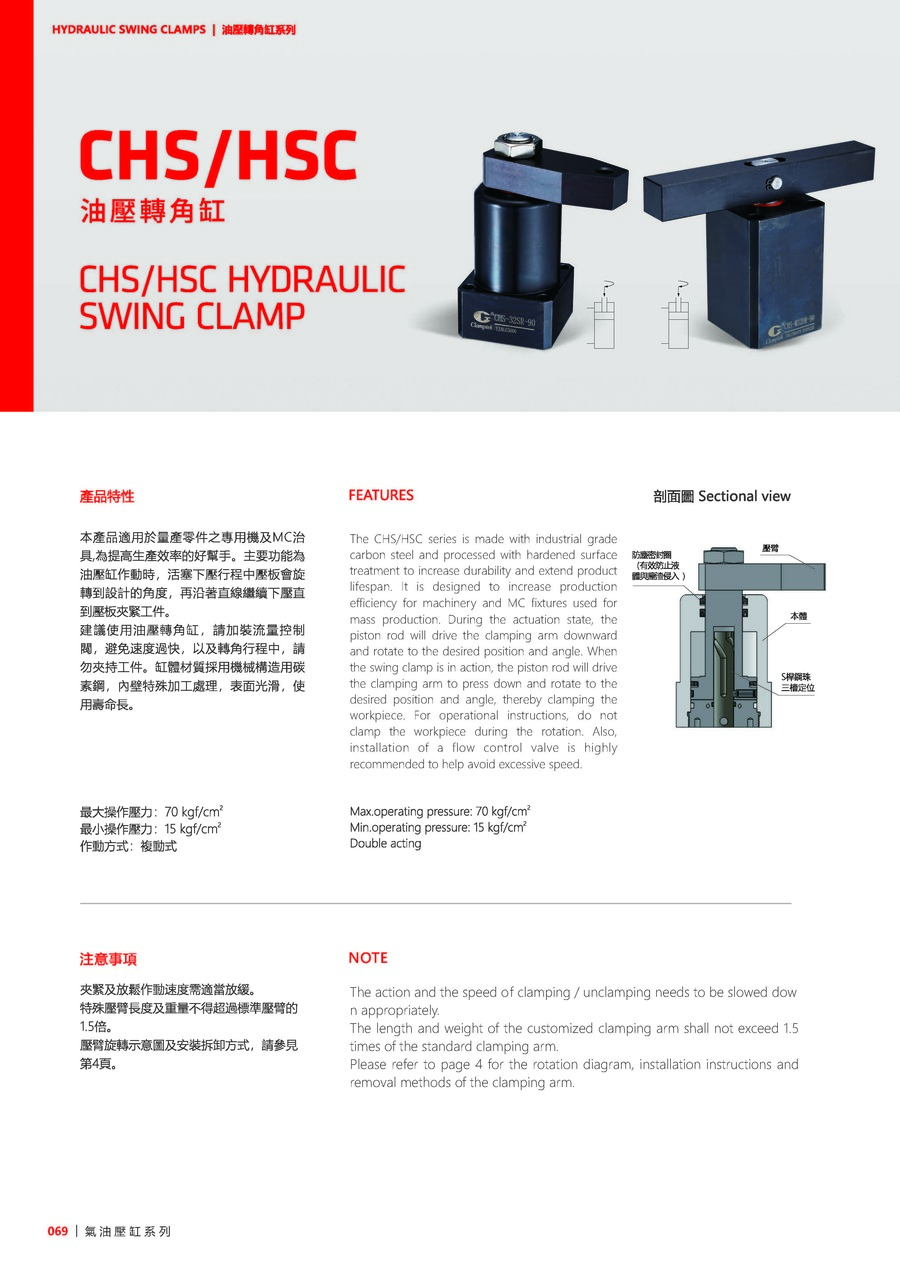

The CHS/HSC series is made with industrial grade carbon steel and processed with hardened surface treatment to increase durability and extend product lifespan. It is designed to increase production efficiency for machinery and MC fixtures used for mass production. During the actuation state, the piston rod will drive the clamping arm downward and rotate to the desired position and angle. When the swing clamp is in action, the piston rod will drive the clamping arm to press down and rotate to the desired position and angle, thereby clamping the workpiece. For operational instructions, do not clamp the workpiece during the rotation. Also, installation of a flow control valve is highly recommended to help avoid excessive speed.

Max.operating pressure: 70 kgf/cm²
Min.operating pressure: 15 kgf/cm²
Double acting

NOTE:
The action and the speed of clamping / unclamping needs to be slowed down appropriately.
The length and weight of the customized clamping arm shall not exceed 1.5 times of the standard clamping arm.
Please refer to Q&A for the rotation diagram, installation instructions and removal methods of the clamping arm.

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade

Ordering Indication

（eg.CHS-MF25SR-90-E）

CHS	Series	CHS, HSC
MF	Type	Blank: Line Type, TB: Threaded Body, MF: Manifold with Flow Control, M: Manifold Type, FA: Flange Type, FAM: Flange with Manifold, FAMT: Flange with Flow Control
25	Hydraulic Cylinder Inside Diameter	Ø25, Ø32, Ø40, Ø50, Ø63
S	Clamping Arm Type	S: Single Side Arm, D: Double Side Arm
R	Swing Direction	R: Turn Right, L: Turn Left, N: No Swing
90	Swing Angle	Standard Angle: 90°(±2°), Order Angle: 0°, 45°(±2°), 60°(±2°)
E	-	Stroke Extension

Product Information

Model	CHS/HSC-25	CHS/HSC-32	CHS/HSC-40	CHS/HSC-50	CHS/HSC-63	CHS-80(Only Line Type)
Clamping Force(70kgf/cm²)	166	343	603	943	1488	2639
Swing Stroke(mm)	CHS: 11.5, HSC: 9	CHS: 14.5, HSC: 11	CHS: 14.5, HSC: 11	CHS: 16, HSC: 13	CHS: 16, HSC: 13	15
Standard Clamping Stroke(mm)	13	15	15	17	17	15
Extended Clamping Stroke(mm)	-	30	30	34	34	-
Standard Total Stroke(mm)	CHS: 24.5, HSC: 22	CHS: 29.5, HSC: 26	CHS: 29.5, HSC: 26	CHS: 33, HSC: 30	CHS: 33, HSC: 30	30
Extended Total Stroke(mm)	-	CHS: 44.5, HSC: 41	CHS: 44.5, HSC: 41	CHS: 50, HSC: 47	CHS: 50, HSC: 47	-
Oil Standard Capacity Clamp(cm³)	CHS: 5.81, HSC: 5.21	CHS: 14.45, HSC: 12.74	CHS: 25.43, HSC: 22.41	CHS: 44.45, HSC: 40.41	CHS: 70.16, HSC: 63.78	113.1
Oil Extended Capacity Clamp(cm³)	-	CHS: 21.81, HSC: 20.09	CHS: 38.36, HSC: 35.34	CHS: 67.35, HSC: 63.31	CHS: 106.3, HSC: 99.92	-
Oil Standard Capacity Unclamp(cm³)	CHS: 12.03, HSC: 10.8	CHS: 23.72, HSC: 20.90	CHS: 37.05, HSC: 32.66	CHS: 64.78, HSC: 58.89	CHS: 102.83, HSC: 93.48	150.72
Oil Extended Capacity Unclamp(cm³)	-	CHS: 37.38, HSC: 32.96	CHS: 55.89, HSC: 51.50	CHS: 98.15, HSC: 92.26	CHS: 155.8, HSC: 146.45	-
Eff. Piston Area Clamp(cm²)	2.37	4.9	8.62	13.47	21.26	37.7
Eff. Piston Area Unclamp(cm²)	4.91	8.04	12.56	19.63	31.16	50.27
Range of Temperature(°C)	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C
