CHA

Product Information

The accessories of the CHA series are optimally designed to create a more compact-sized product with enhanced strength. With its special dust-proof design, this product has improved its sealing performance and protects against any particles or debris while in use. The product's structure design has a high torsion resistance that achieves maximum durability.

Max. operating pressure: 70 kgf/cm²
Min. operating pressure: 15 kgf/cm²
Double acting

NOTE:
The action and the speed of clamping/unclamping needs to be slowed down appropriately.
Please refer to Q&A for installation instructions or removal methods of the clamping arm.
Customization is available upon request, please contact us for more info.

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.

Ordering Indication

（eg.CHA-040SL-90GM）

CHA	Series	CHA
040	Body Size	036: ØI=36, 040: ØI=40, 048: ØI=48, 055: ØI=55, 065: ØI=65, 075: ØI=75, 090: ØI=90, 105: ØI=105
S	Clamping Arm Type	S: Single Side Arm, D: Double Side Arm(雙邊壓臂無雙出桿型)
L	Swing Direction	R: Right, L: Left
90	Swing Angle	Standard Angle: 90°(±2°), Order Angle: 30°(±2°), 45°(±2°), 60°(±2°)
G	Type	Blank: Line Type, G: Manifold Type, C: Manifold with Flow Control
M	-	Blank: Standard, M: Air Sensor Manifold Option, N: Air Sensor Piping Option, D: Double End Rod Option

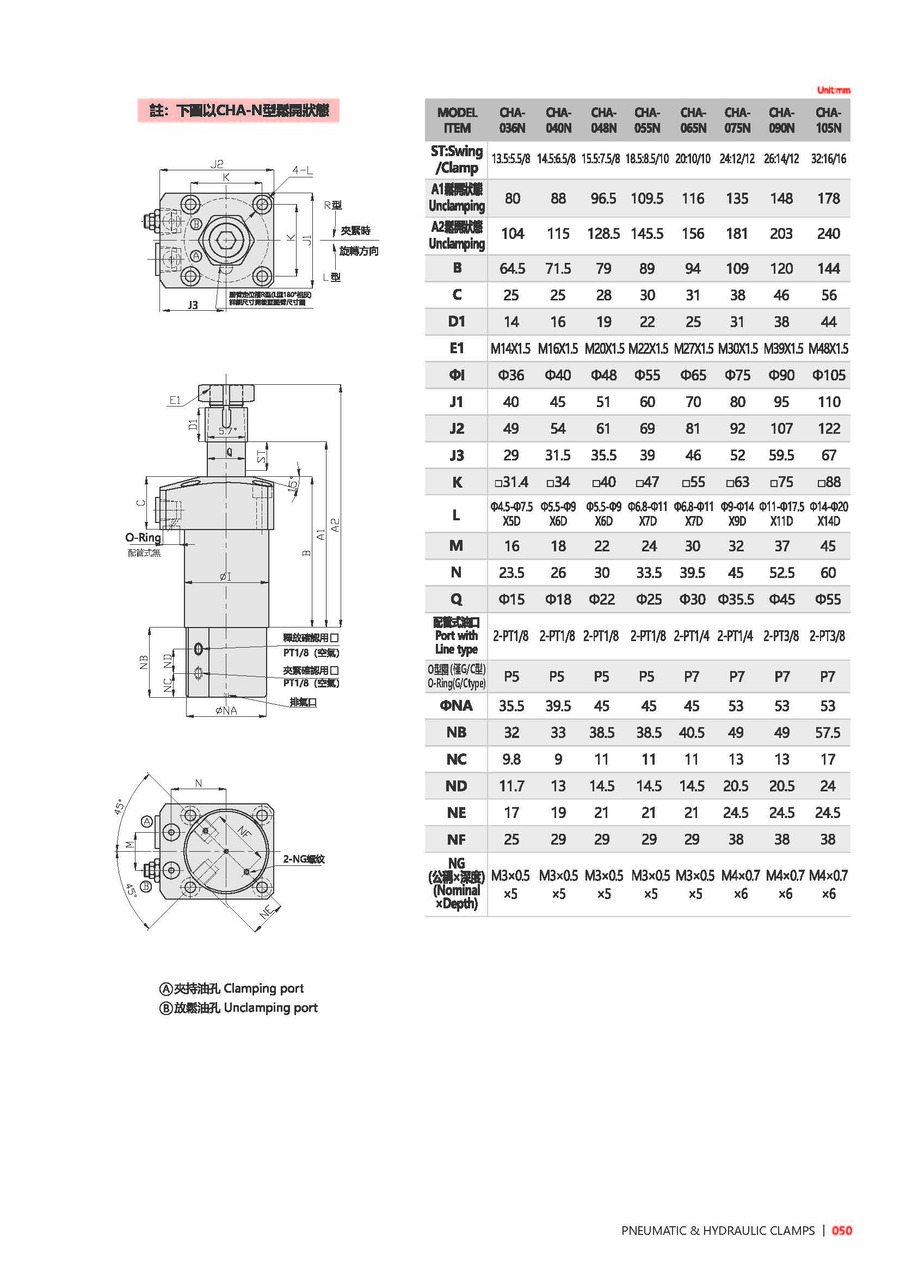

Product Information

Model	CHA-036	CHA-040	CHA-048	CHA-055	CHA-065	CHA-075	CHA-090	CHA-105
Clamping Force(70kgf/cm²)	220	284.2	445.9	721	880	1421	1978	2789
Swing Stroke(mm)	5.5	6.5	7.5	8.5	10	12	14	16
Clamping Stroke(mm)	8	8	8	10	10	12	12	16
Total Stroke(mm)	13.5	14.5	15.5	18.5	20	24	26	32
Cylinder Capacity Unclamp(cm³)	6.63	9.57	15.76	28.12	38.6	72.46	114.82	203.5
Cylinder Capacity Clamp(cm³)	4.24	5.89	9.87	19.06	25.14	48.7	73.48	127.5
Eff. Piston Area Unclamp(cm²)	4.91	6.6	10.17	15.2	19.63	30.19	44.16	63.59
Eff. Piston Area Clamp(cm²)	3.14	4.06	6.37	10.3	12.57	20.3	28.26	39.84
Range of Temperature(°C)	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C
