CHLC

Product Information

The clamping mechanism used on this hydraulic cylinder is based on the principle of leverage. The clamping force of the leverage clamps is greater than the swing clamps. When the piston rod is pushed out, the cylinder is in a clamped state. The main component parts are externally installed which is optimal for product maintenance. The CHLC hydraulic cylinders are manufactured with industrial grade carbon steel for increased durability and extended product lifespan. The piston rod is made of heat-treated 45 steel and chrome-plated surface.

Max. operating pressure: 70 kgf/cm²
Min. operating pressure: 10 kgf/cm²
Double acting

NOTE:
The action and the speed of clamping/unclamping needs to be slowed down appropriately.

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.

Ordering Indication

（eg.CHLC-M25RA）

CHLC	Series	CHLC
M	Type	Blank: Line Type, M: Manifold Type, MF: Manifold with Flow Control, FA: Flange Type, FAM: Flange with Manifold, FAMT: Flange with Flow Control(The Line type, MF and FA only have single direction.)
25	Hydraulic Cylinder Inside Diameter	Ø25, Ø32, Ø40, Ø50, Ø63
R	Lever Direction	R: Right, L: Left
A	-	A: Integrated

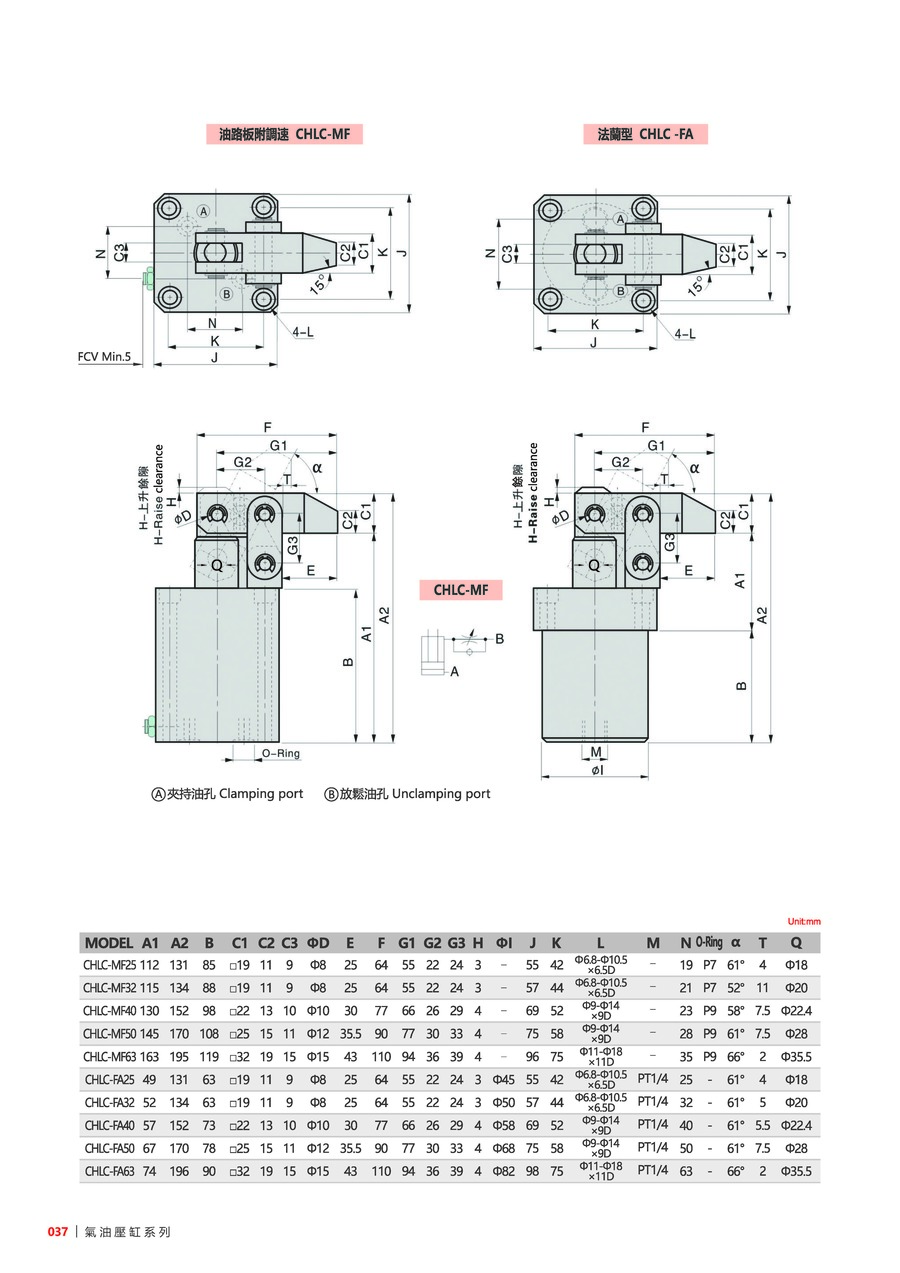

Product Information

Model	CHLC-25	CHLC-32	CHLC-40	CHLC-50	CHLC-63
Clamping Force(70kgf/cm²)	252	412	618	981	1482
Clamping Stroke(mm)	22	22	26	30	40
Total Stroke(mm)	25	25	30	34	44
Cylinder Capacity Clamp(cm³)	12.28	20.1	37.68	66.74	124.64
Cylinder Capacity Unclamp(cm³)	5.93	12.25	25.86	45.8	85.04
Eff. Piston Area Clamp(cm²)	4.91	8.04	12.56	19.63	31.16
Eff. Piston Area Unclamp(cm²)	2.37	4.9	8.62	13.47	21.26
Range of Temperature(°C)	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C	-10~+70°C
