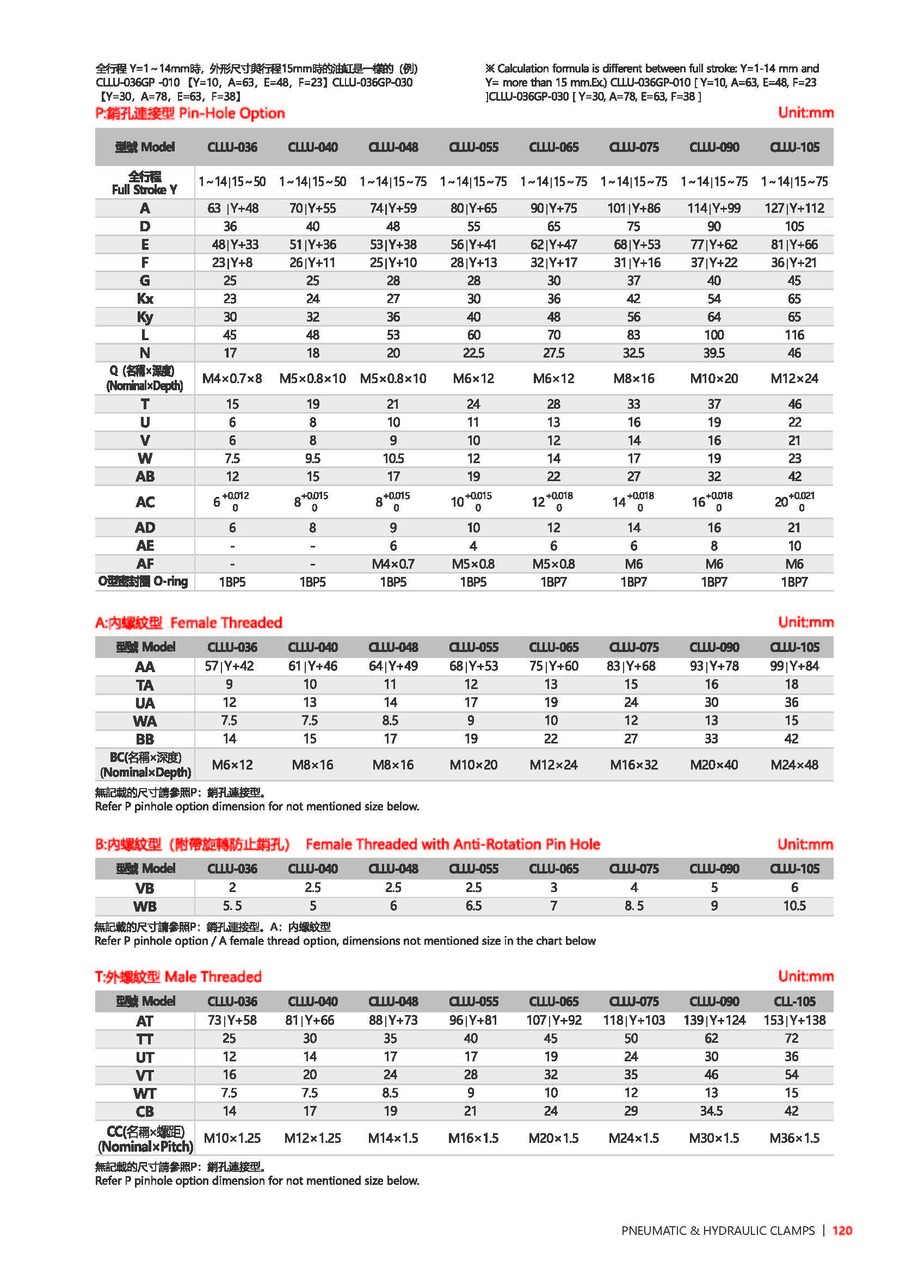

Model | CLLU-036 | CLLU-040 | CLLU-048 | CLLU-055 | CLLU-065 | CLLU-075 | CLLU-090 | CLLU-105 |
---|---|---|---|---|---|---|---|---|
Full Stroke Y(mm) | 1~50 | 1~50 | 1~150 | 1~150 | 1~150 | 1~150 | 1~150 | 1~150 |
Cylinder Area(Push Side)(cm²) | 4.5 | 5.3 | 8 | 9.6 | 15.9 | 23.8 | 36.3 | 50.3 |
Cylinder Area(Pull Side)(cm²) | 2.5 | 2.8 | 4.9 | 5.8 | 11 | 16.7 | 26.4 | 34.4 |
Cylinder Force Calculation Formula(Push Side)(KN) | Px0.45 | Px0.53 | Px0.80 | Px0.96 | Px1.59 | Px2.38 | Px3.63 | Px5.03 |
Cylinder Force Calculation Formula(Pull Side)(KN) | Px0.25 | Px0.28 | Px0.49 | Px0.58 | Px1.10 | Px1.67 | Px2.64 | Px3.44 |
Cylinder Capacity Calculation Formula(Push Side)(cm³) | Yx0.45 | Yx0.53 | Yx0.80 | Yx0.96 | Yx1.59 | Yx2.38 | Yx3.63 | Yx5.03 |
Cylinder Capacity Calculation Formula(Pull Side)(cm³) | Yx0.25 | Yx0.28 | Yx0.49 | Yx0.58 | Yx1.10 | Yx1.67 | Yx2.64 | Yx3.44 |
Cylinder Inside Diameter(mm) | Ø24 | Ø26 | Ø32 | Ø35 | Ø45 | Ø55 | Ø68 | Ø80 |
Rod Diameter(mm) | Ø16 | Ø18 | Ø20 | Ø22 | Ø25 | Ø30 | Ø35.5 | Ø45 |
Max. Operating Pressure(Mpa) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
Min. Operating Pressure(Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Withstanding Pressure(Mpa) | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
Operating Temperature(°C) | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 |
Weight(kg) | 0.6~0.8 | 0.7~0.9 | 1.0~2.3 | 1.3~3.1 | 1.9~4.1 | 2.8~5.3 | 4.3~7.6 | 5.9~9.8 |
