HBC

Product Information

The HBC series is optimally designed with imported oil seals from Germany to help improve pressure resistance. With its standardized structure, this cylinder is interchangeable with other standard hydraulic push-pull cylinders from other brands. The installations are dual with axial and lateral types.

Max. operating pressure: 300 kgf/cm2
Min. operating pressure: 100 kgf/cm2
Single acting and Double acting

NOTE:
Customization is available upon request (300＜P＜500), please contact us for more info.

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.

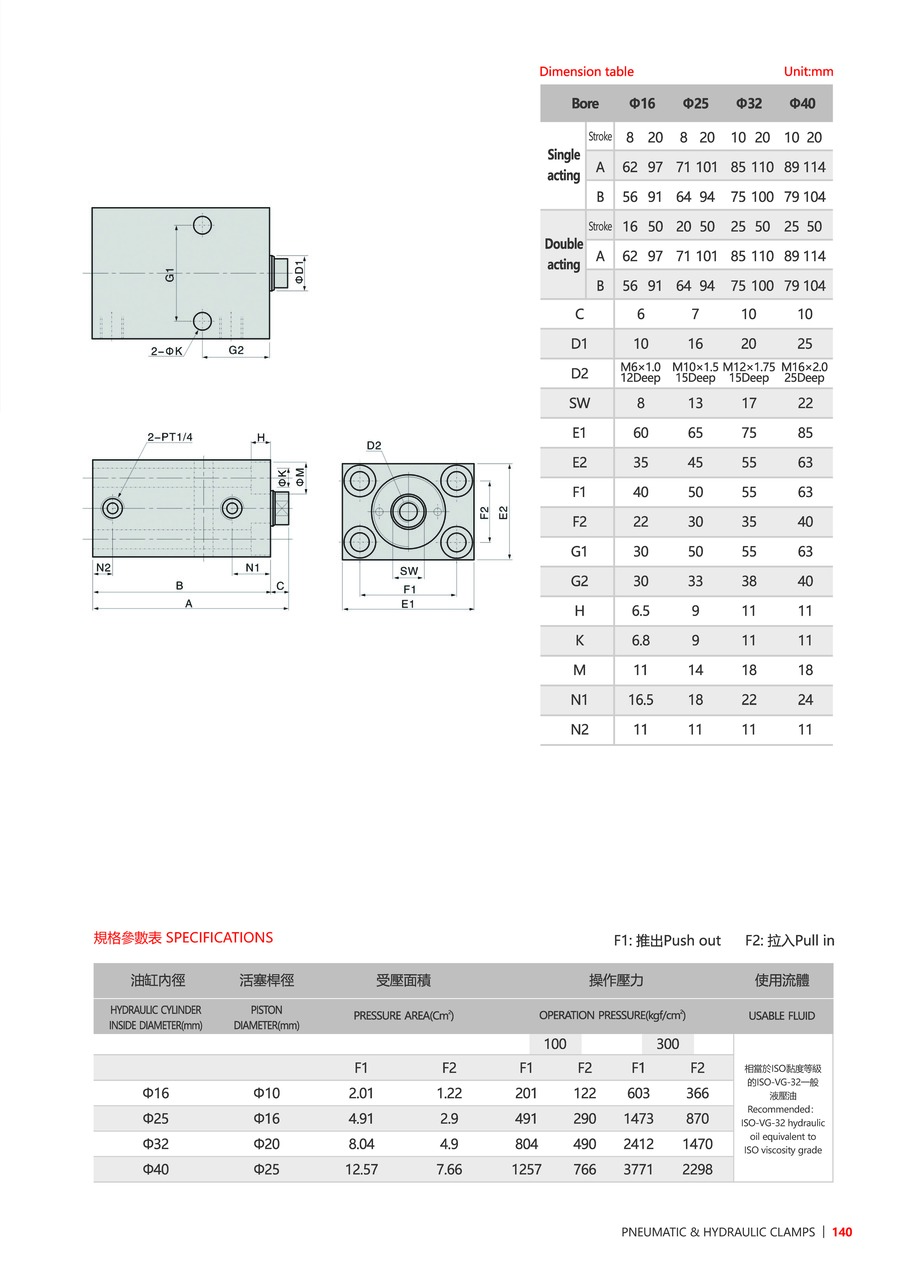

Ordering Indication

（eg.HBC-32S-20）

HBC	Series	HBC
32	Hydraulic Cylinder Inside Diameter	Ø16, Ø25, Ø32, Ø40
S	Acting Type	S: Single-Acting, D: Double-Acting
20	Standard Stroke	Refer to the dimension table

Product Information

Model	HBC-16	HBC-25	HBC-32	HBC-40
Piston Diameter(mm)	Ø10	Ø16	Ø20	Ø25
Pressure Area F1(cm²)	2.01	4.91	8.04	12.57
Pressure Area F2(cm²)	1.22	2.9	4.9	7.66
Operation Pressure100(F1)(kgf/cm²)	201	491	804	1257
Operation Pressure100(F2)(kgf/cm²)	122	290	490	766
Operation Pressure300(F1)(kgf/cm²)	603	1473	2412	3771
Operation Pressure300(F2)(kgf/cm²)	366	870	1470	2298
