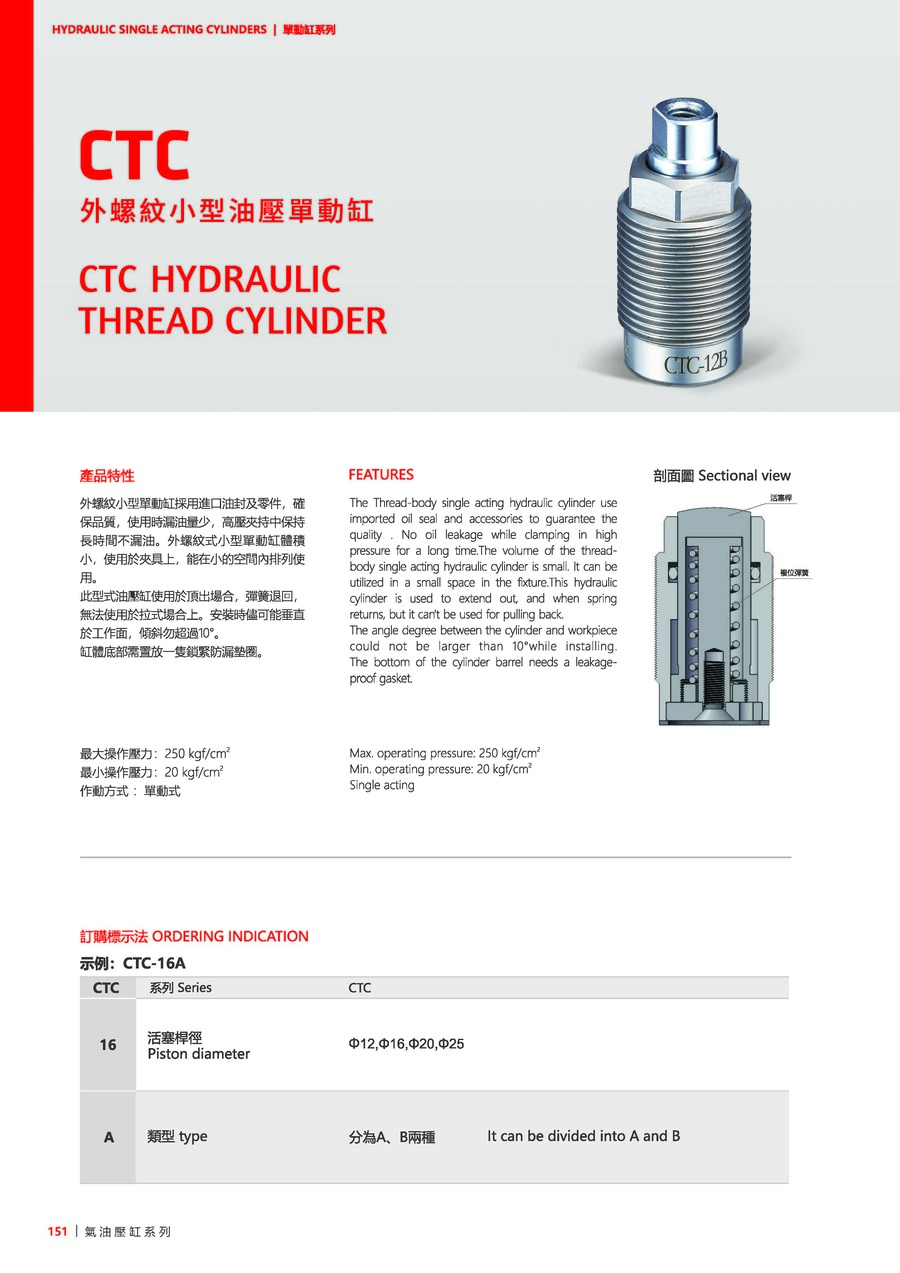

CTC
Product Information
The Thread-body single acting hydraulic cylinder use imported oil seal and accessories to guarantee the quality. No oil leakage while clamping in high pressure for a long time. The volume of the thread-body single acting hydraulic cylinder is small. It can be utilized in a small space in the fixture.
This hydraulic cylinder is used to extend out, and when spring returns, but it can't be used for pulling back.
The angle degree between the cylinder and workpiece could not be larger than 10° while installing.
The bottom of the cylinder barrel needs a leakage-proof gasket.
Max. operating pressure: 250 kgf/cm²
Min. operating pressure: 20 kgf/cm²
Single acting
This hydraulic cylinder is used to extend out, and when spring returns, but it can't be used for pulling back.
The angle degree between the cylinder and workpiece could not be larger than 10° while installing.
The bottom of the cylinder barrel needs a leakage-proof gasket.
Max. operating pressure: 250 kgf/cm²
Min. operating pressure: 20 kgf/cm²
Single acting
