NOTE:
1. If unused for a long period of time, the delay is longer than initial set time.
2. It can extend the time delay from the tank and its capacity increases by using T port.
3. If actuators on outgoing side does not operate after the time delayed setting, verify setting after pressure returns to zero.
4. Confirmation for delayed time should be done after fastening the lock nut of the delayed time adjusting thread.
Usable fluid:
Oiled Dry Clean Compressed Air.
1. If unused for a long period of time, the delay is longer than initial set time.
2. It can extend the time delay from the tank and its capacity increases by using T port.
3. If actuators on outgoing side does not operate after the time delayed setting, verify setting after pressure returns to zero.
4. Confirmation for delayed time should be done after fastening the lock nut of the delayed time adjusting thread.
Usable fluid:
Oiled Dry Clean Compressed Air.

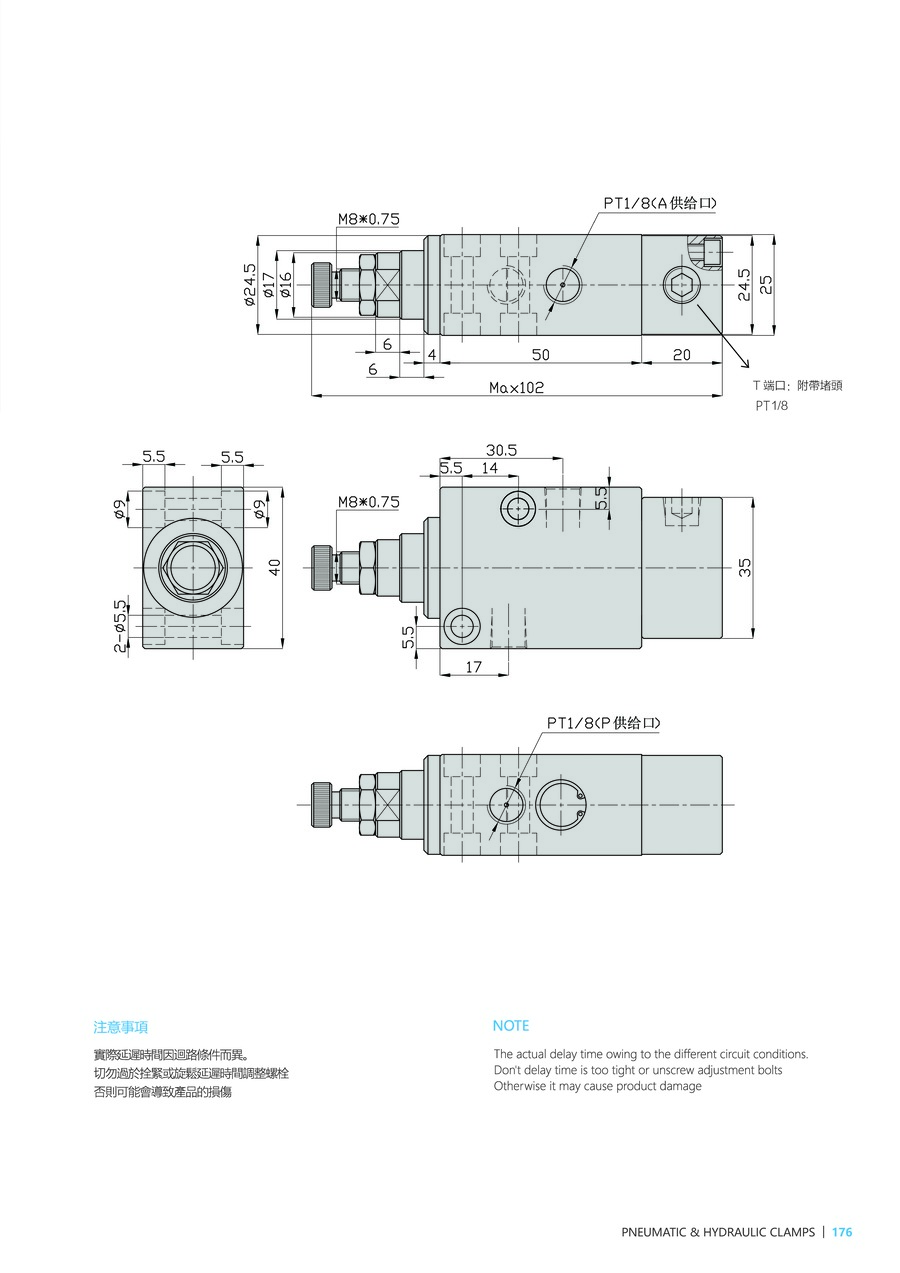

Ordering Indication
| CWD-B |
|---|
Product Information
| Model | CWD-B |
|---|---|
| Max. Operating Pressure(Mpa) | 0.6 |
| Min. Operating Pressure(Mpa) | 0.2 |
| Withstanding Pressure(Mpa) | 1.5 |
| Delayed Time(sec) | 1~10 |
| Min. Passage Area(m²) | 4 |
| Operating Temperature(°C) | 0~+70 |
| Weight(kg) | 0.2 |
